Description:

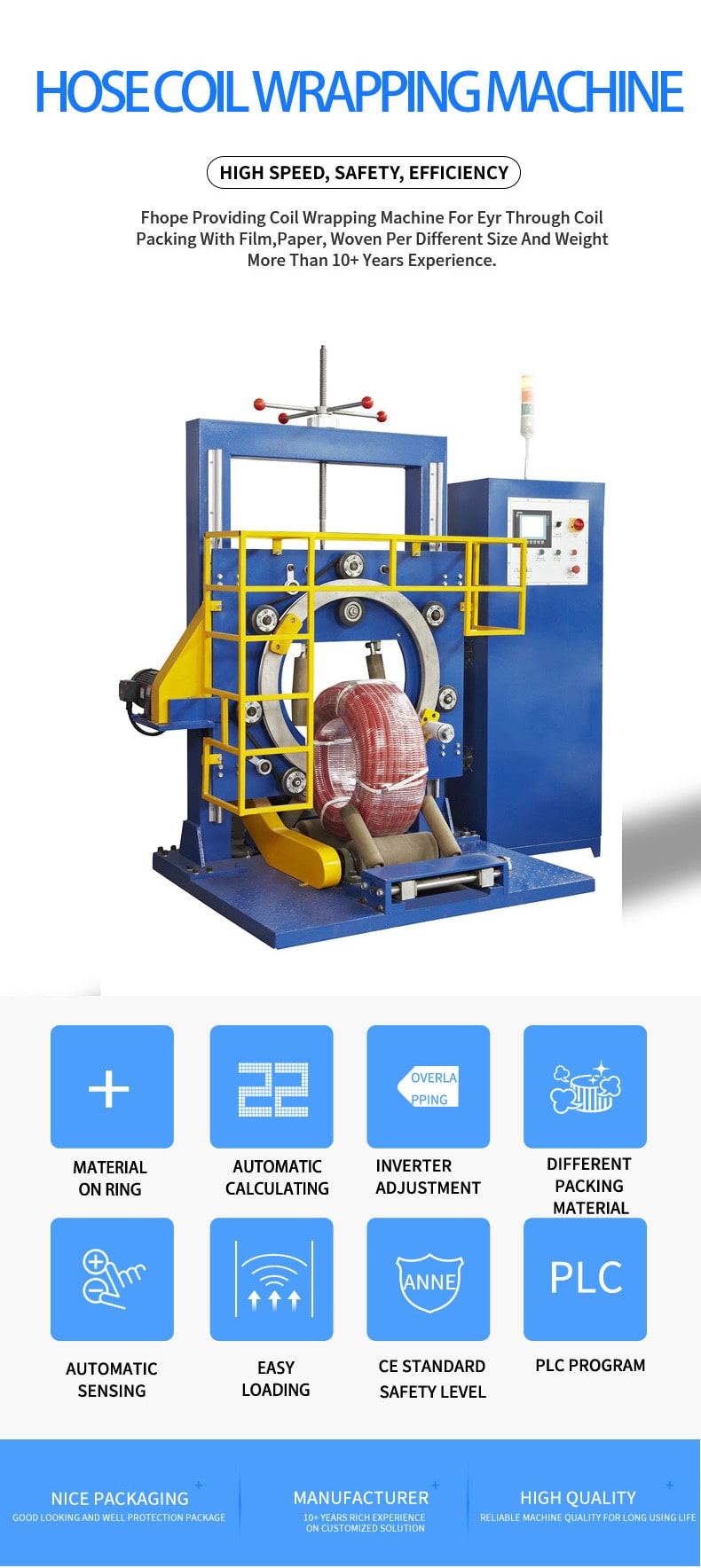

Hose wrapping machine FPH-300N is available to hose reel, plastic tube packaging, with high efficiency, good packaging, saving labor and material cost. This is a hose coil eye with a vertical packing method for small and light corrugate hose coils.
Fhope hose wrapping machine is mainly used to packaging of hose coil.



Features:

1. Many packing materials can be chosen using.
2. Reset function be convenient and fast.
3. Manual and automatic two modes are available.
4. Frequency converter can adjust the speed of the machine running.
5. 10%-90% overlap rate can be set freely as required.
6. Safety guardrail protects the surface of the product from injury.
7. Special brake device design to ensure smooth operation of the machine.
8. Wrapping tension adjustable.
9. Average packing speed 20-35 seconds per coil.



Voltage (V/Hz)    AC 380/50( or your requirement)
Power (KW)    1.5
Coil ID(mm)    300-700
Coil OD(mm)    500-1000
Coil width(mm)    50-300
Coil Weight(Kg)    5-100
Packing material    LLDPE/PE/Stretch film/PVC/
Ring speed(r)    10-100
Wrapping speed    15-35sec/pcs
Overlapping rate    10-90%
